Class A Red Yellow Green Cylinder Type

1. Use different colors to mark different output modes, which is convenient for users to distinguish the output logic mode
2. Yellow represents NPN output mode, working voltage: 6-36VDC
3. Green represents PNP output mode, working voltage: 6-36VDC
4. Red represents AC output, working voltage: 90-250AC
Get a Quote
Technical Parameters
Class A red yellow green cylinder type

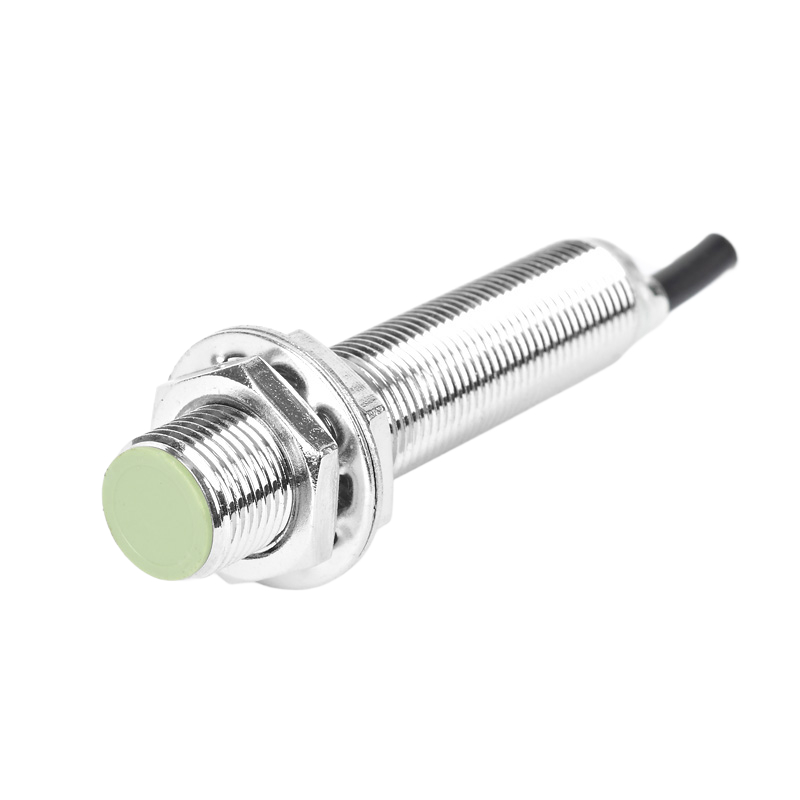

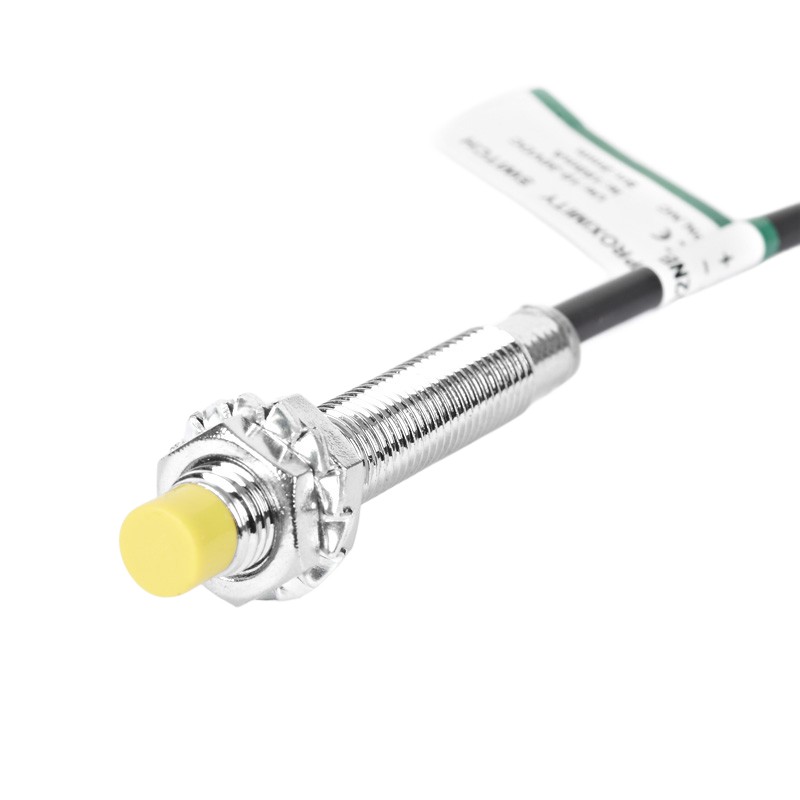

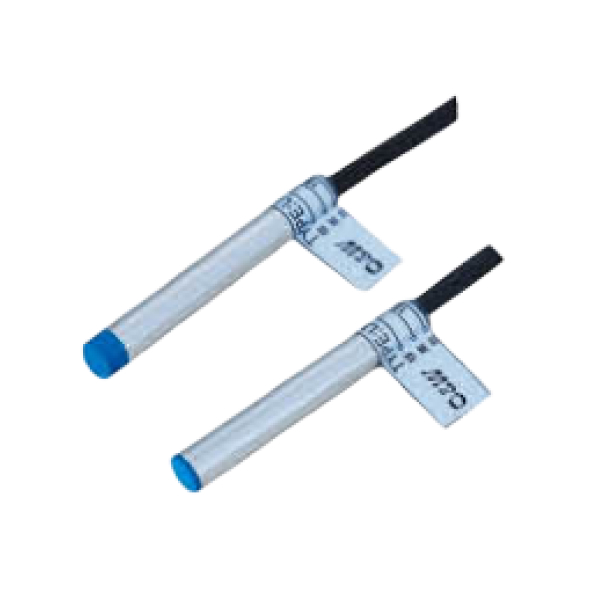

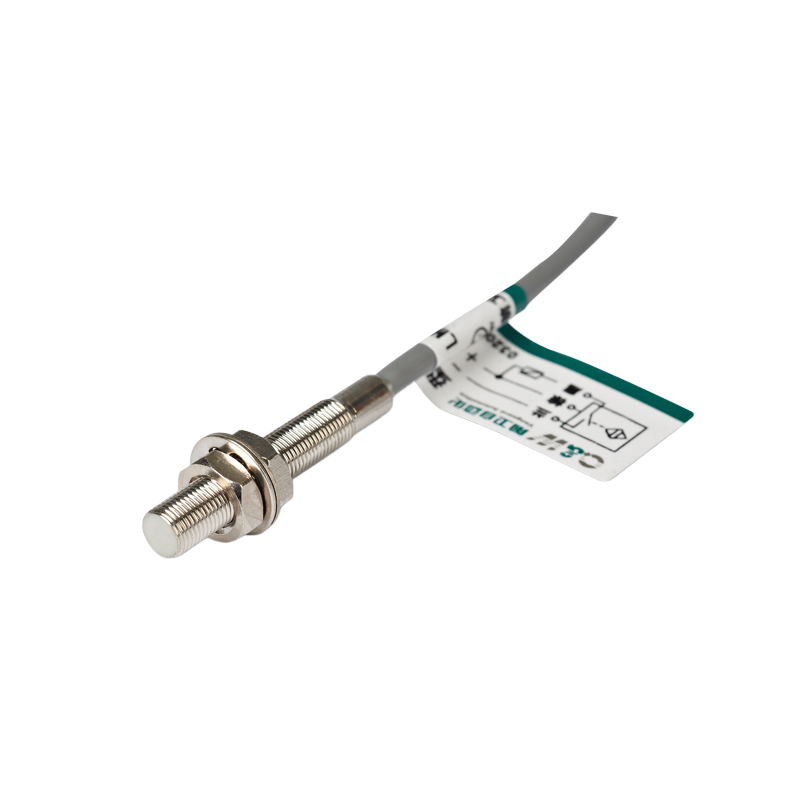

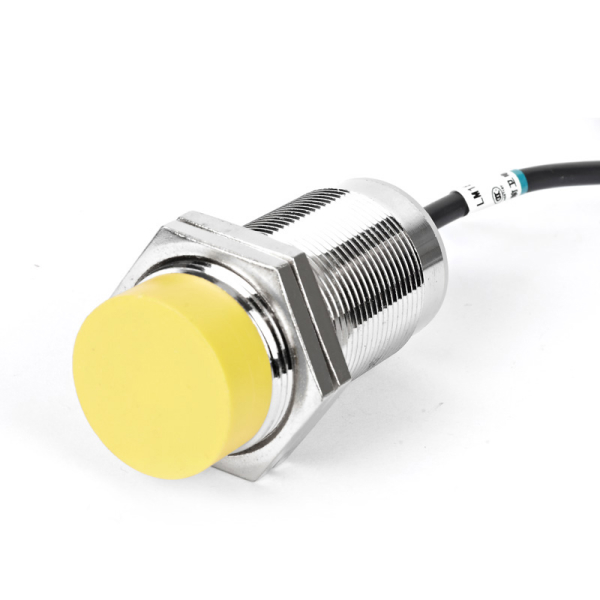

Product PhotoLM5.jpgClass A red yellow green cylinder type_LM6.jpgLM8.jpgLM12.jpgLM18.jpgClass A red yellow green cylinder type_LM30.jpg
Outward appearance codeLM5LM6LM8LM12LM18LM30

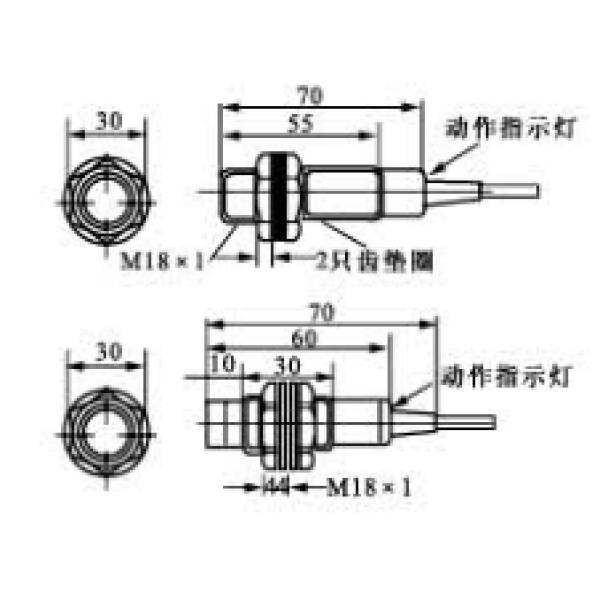

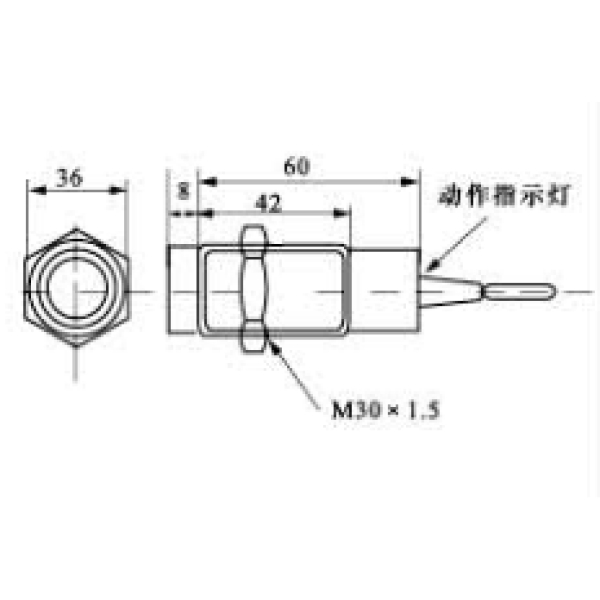

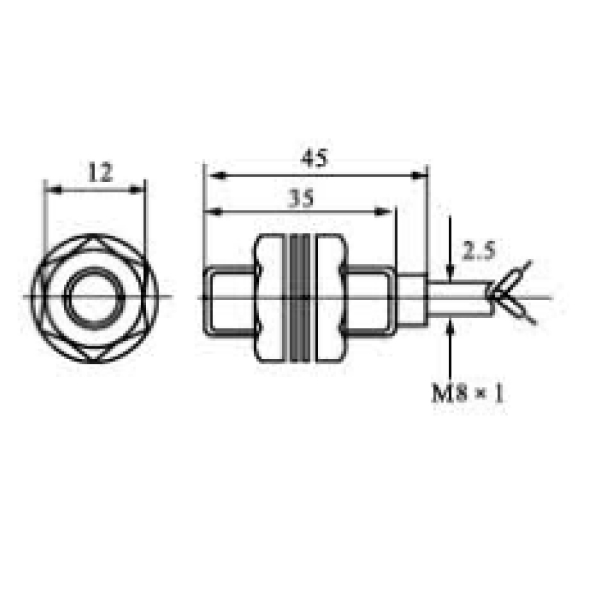

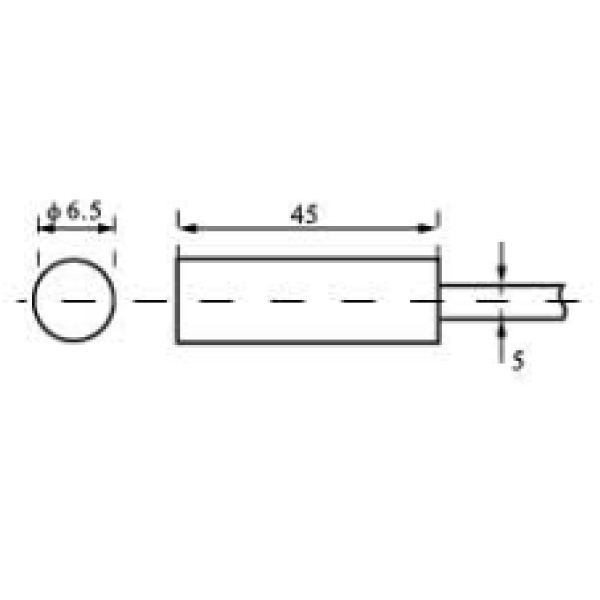

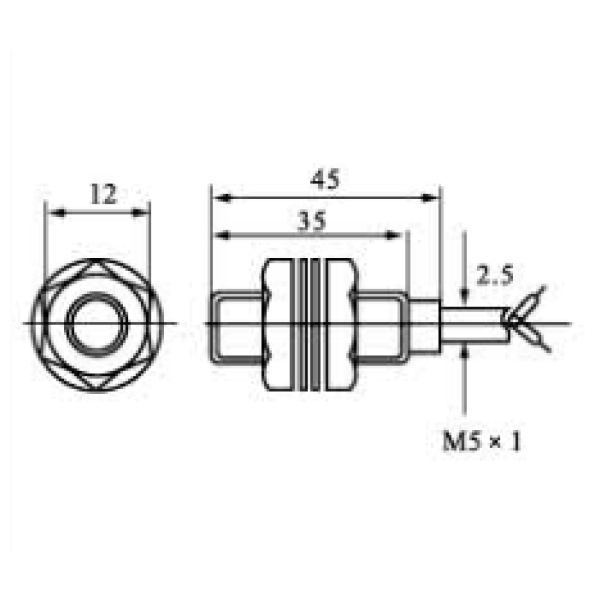

Overall dimensionsClass A red yellow green cylinder type_Overall dimensions_LM5.jpgClass A red yellow green cylinder type_Overall dimensions_LM6.jpgClass A red yellow green cylinder type_Overall dimensions_LM8.jpgClass A red yellow green cylinder type_Overall dimensions_LM12.jpgClass A red yellow green cylinder type_Overall dimensions_LM18.jpgClass A red yellow green cylinder type_Overall dimensions_LM30.jpg
FlushDetection distance1mm1mm1mm2mm5mm10mm
Working voltage
6-36VDC		NPNNOLM5-3001NALM6-3001NALM8-3001NALM12-3002NALM18-3005NALM30-3010NA
NCLM6-3001NBLM8-3001NBLM12-3002NBLM18-3005NBLM30-3010NB
NO+NCLM12-3002NCLM18-3005NCLM30-3010NC
PNPNOLM5-3001PALM6-3001PALM8-3001PALM12-3002PALM18-3005PALM30-3010PA
NCLM6-3001PBLM8-3001PBLM12-3002PBLM18-3005PBLM30-3010PB
NO+NCLM12-3002PCLM18-3005PCLM30-3010PC
Two-wireNOLM6-3001LALM8-3001LALM12-3002LALM18-3005LALM30-3010LA
NCLM6-3001LBLM8-3001LBLM12-3002LBLM18-3005LBLM30-3010LB
AC
90-250VAC		SRC
Control-label
silicon		NOLM12-2002ALM18-2005ALM30-2010A
NCLM12-2002BLM18-2005BLM30-2010B
NO+NCLM18-2005CLM30-2010C
Relay outputLM30-2010JC
Non-Flush Detection distance1.5mm2mm4mm8mm15mm

Working voltage
6-36VDC		NPNNOLM6-3002NALM8-3002NALM12-3004NALM18-3008NALM30-3015NA
NCLM6-3002NBLM8-3002NBLM12-3004NBLM18-3008NBLM30-3015NB
NO+NCLM12-3004NCLM18-3008NCLM30-3015NC
PNPNOLM6-3002PALM8-3002PALM12-3004PALM18-3008PALM30-3015PA
NCLM6-3002PBLM8-3002PBLM12-3004PBLM18-3008PBLM30-3015PB
NO+NCLM12-3004PCLM18-3008PCLM30-3015PC
Two-wireNOLM6-3002LALM8-3002LALM12-3004LALM18-3008LALM30-3015LA
NCLM6-3002LBLM8-3002LBLM12-3004LBLM18-3008LBLM30-3015LB
AC
90-250VAC		SRC
Control-label
silicon		NOLM8-2002ALM12-2004ALM18-2008ALM30-2015A
NCLM8-2002BLM12-2004BLM18-2008BLM30-2015B
NO+NCLM18-2008CLM30-2015C
Relay outputLM30-2015JC
Output currentDC100mA150mA150mA200mA200mA200mA
SCR/ Relay
Output voltage drop DC/AC DC(NPN, PNP): Max3V, 2-wire: Max 3.9V、AC：Max10V DC<3V、AC<10V
Consumption currentDC(NPN, PNP):DC12V 8mA, 24V 15mA 、AC：Max10mA DC<15mA、AC<10mA
Standard sensing object6*6*1 (A3 铁 iron)8*8*1 (A3 铁 iron)8*8*1 (A3 铁 iron)15*15*1 (A3 铁 iron)18*18*1 (A3 铁 iron)30*30*1 (A3 铁 iron)
Repeated precision0.010.010.010.010.020.05
DC/AC Response frequency500Hz500Hz500Hz/25Hz400Hz/25Hz200Hz/25Hz200Hz/25Hz
Working Ambient temperature-25℃ ~ +75℃
Insulation resistance≥50M Ω≥30M Ω≥50M Ω≥50M Ω≥50M Ω≥50M Ω
Shell MaterialMetal
Protection gradeIP67
