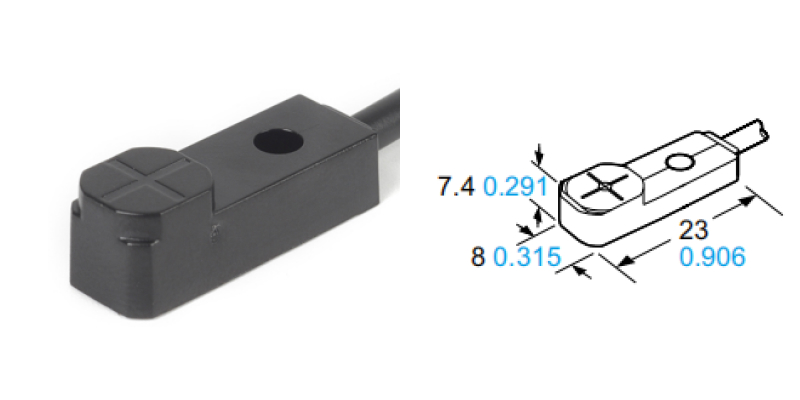

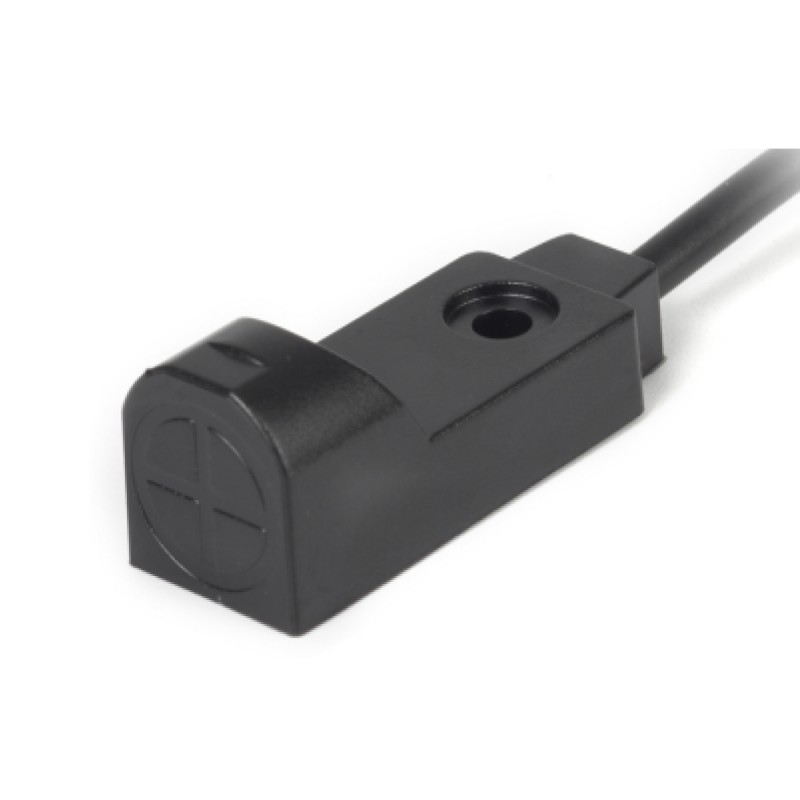

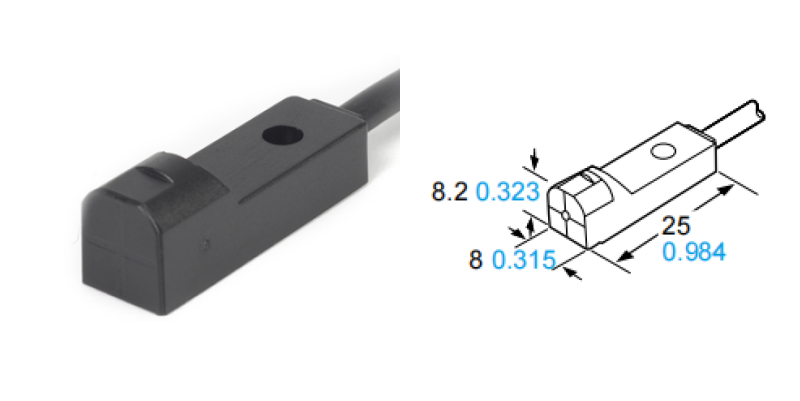

| LMGX-8 Type | |||||
| Type | NPN output | PNP output | |||
| Product model | Front sensing | LMGX-F8A | LMGX-F8B | LMGX-F8A-P | LMGX-F8B-P |
 | |||||
| Top sensing | LMGX-H8A | LMGX-H8B | LMGX-H8A-P | LMGX-H8B-P | |
 | |||||
| Max.detection distance | 2.0mm | ||||
| Stable sensing range | 0-1.8mm | ||||
| Standard sensing object | 15*15*1(Iron sheet） | ||||
| Hysteresis | 20% | ||||
| Repeatability | Along sensing axis, perpendicular to sensing axis: 0.04 mm | ||||
| Supply voltage | 12-24VDC | ||||
| Current consumption | 15mA | ||||
| Output | NPN NO | NPN NC | PNP NO | PNP NC | |
| Response frequency | 500 Hz | ||||
| Operation indicator | Red LED | ||||
| Protection | IP 68 | ||||
| Ambient temperature | -15°C-55°C | ||||
| Ambient humidity | 35 - 85 % RH | ||||
| Voltage withstandability | 1000 VAC | ||||
| Insulation resistance | 50 MΩ | ||||
| Material | Shell: ABS;indicator part: polyester | ||||
| Cable | cable PVC: 1M/special customized cable: line length can be customized | ||||
| Net weight | Front sensing: 15g approx., Top sensing : 20g approx. | ||||

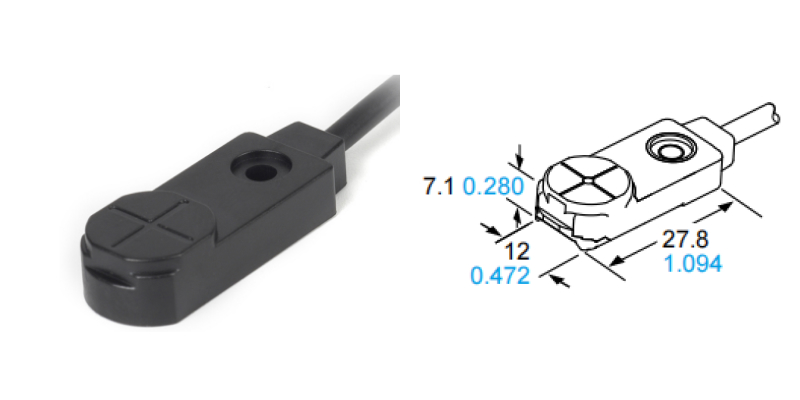

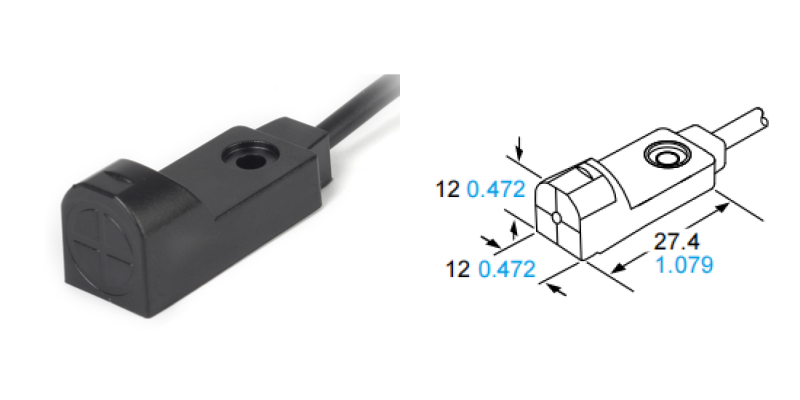

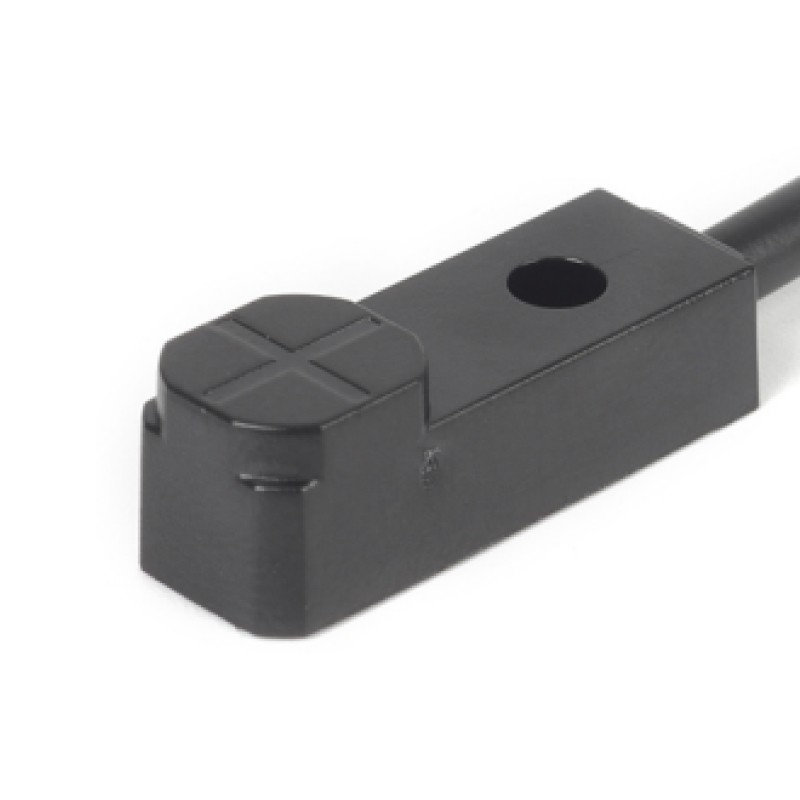

| LMGX-12 Type | |||||
| Type | NPN output | PNP output | |||
| Product model | Front sensing | LMGX-F12A | LMGX-F12B | LMGX-F12A-P | LMGX-F12B-P |
 | |||||
| Top sensing | LMGX-H12A | LMGX-H12B | LMGX-H12A-P | LMGX-H12B-P | |
 | |||||
| Max.detection distance | 4mm | ||||
| Stable sensing range | 0-3.3mm | ||||
| Standard sensing object | 20*20*1(Iron sheet） | ||||
| Hysteresis | 20% | ||||
| Repeatability | Along sensing axis, perpendicular to sensing axis: 0.04 mm | ||||
| Supply voltage | 12-24VDC | ||||
| Current consumption | 15mA | ||||
| Output | NPN NO | NPN NC | PNP NO | PNP NC | |
| Response frequency | 500 Hz | ||||
| Operation indicator | Red LED | ||||
| Protection | IP 68 | ||||
| Ambient temperature | -15°C-55°C | ||||
| Ambient humidity | 35 - 85 % RH | ||||
| Voltage withstandability | 1000 VAC | ||||
| Insulation resistance | 50 MΩ | ||||
| Material | Shell: ABS;indicator part: polyester | ||||
| Cable | cable PVC: 1M/special customized cable: line length can be customized | ||||
| Net weight | Front sensing: 15g approx., Top sensing : 20g approx. | ||||

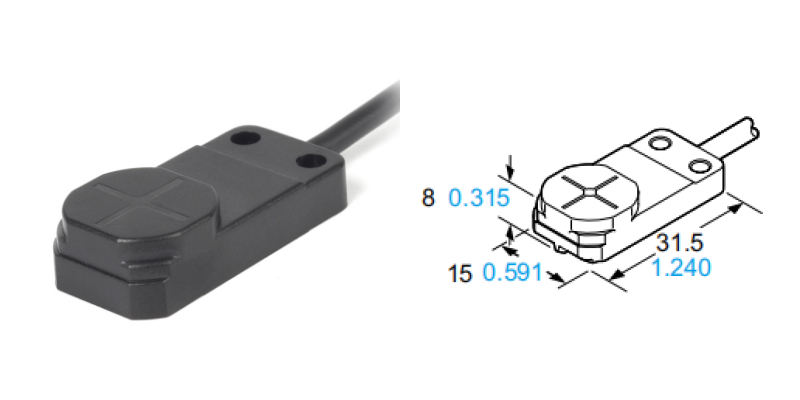

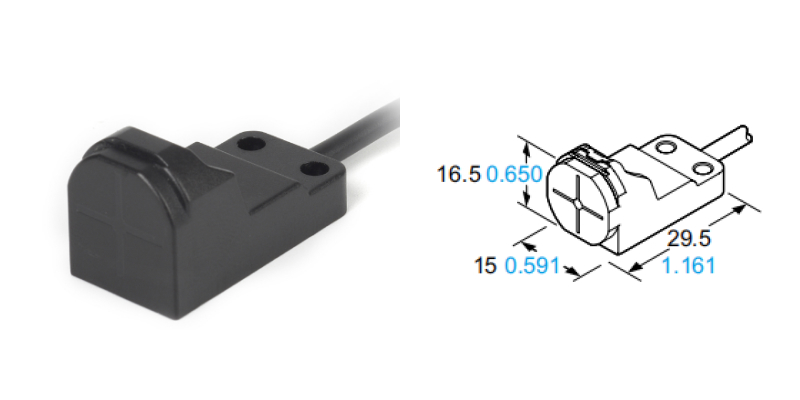

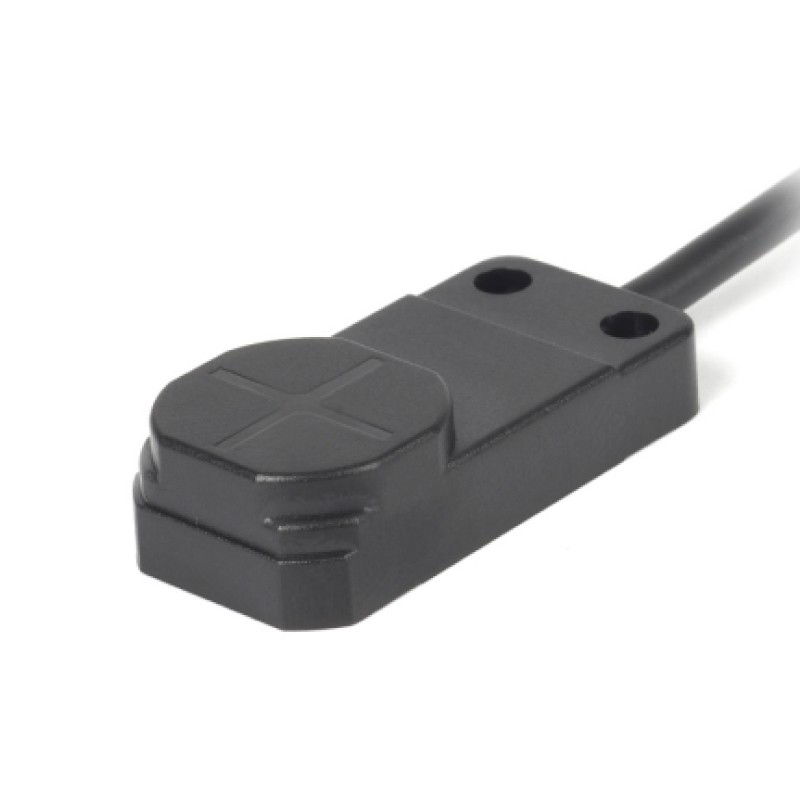

| LMGX-15 Type | |||||
| Type | NPN output | PNP output | |||
| Product model | Front sensing | LMGX-F15A | LMGX-F15B | LMGX-F15A-P | LMGX-F15B-P |
 | |||||
| Top sensing | LMGX-H15A | LMGX-H15B | LMGX-H15A-P | LMGX-H15B-P | |
 | |||||
| Max.detection distance | 5mm | ||||
| Stable sensing range | 0-4.2mm | ||||
| Standard sensing object | 20*20*1(Iron sheet） | ||||
| Hysteresis | 20% | ||||
| Repeatability | Along sensing axis, perpendicular to sensing axis: 0.04 mm | ||||
| Supply voltage | 12-24VDC | ||||
| Current consumption | 15mA | ||||
| Output | NPN NO | NPN NC | PNP NO | PNP NC | |
| Response frequency | 250 Hz | ||||
| Operation indicator | Red LED | ||||
| Protection | IP 68 | ||||
| Ambient temperature | -15°C-55°C | ||||
| Ambient humidity | 35 - 85 % RH | ||||
| Voltage withstandability | 1000 VAC | ||||
| Insulation resistance | 50 MΩ | ||||
| Material | Shell: ABS;indicator part: polyester | ||||
| Cable | cable PVC: 1M/special customized cable: line length can be customized | ||||
| Net weight | Front sensing: 15g approx., Top sensing : 20g approx. | ||||

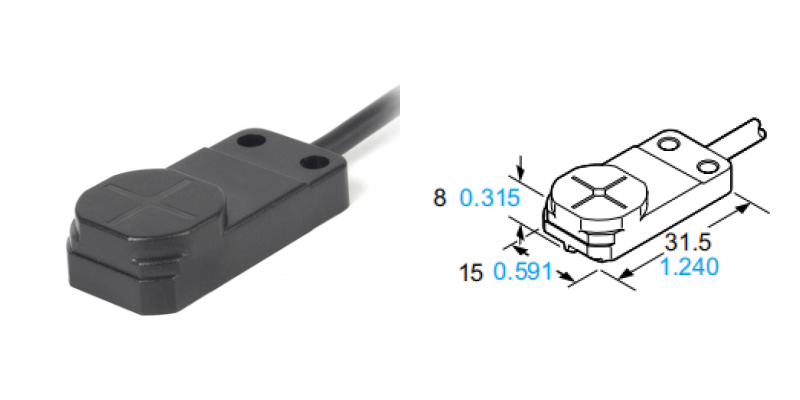

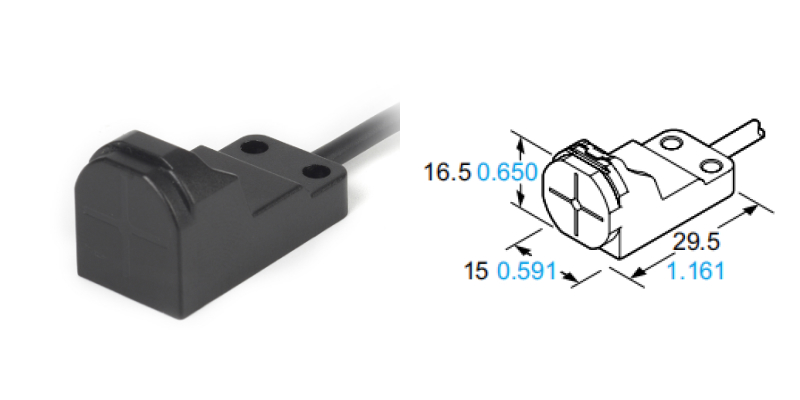

| LMGX-15 Long distance detection Type | |||||
| Type | NPN output | PNP output | |||
| Product model | Front sensing | LMGX-FL15A | LMGX-FL15B | LMGX-FL15A-P | LMGX-FL15B-P |
 | |||||
| Top sensing | LMGX-HL15A | LMGX-HL15B | LMGX-HL15A-P | LMGX-HL15B-P | |
 | |||||
| Max.detection distance | 8mm | ||||
| Stable sensing range | 0-6.7mm | ||||
| Standard sensing object | 30*30*1(Iron sheet） | ||||
| Hysteresis | 20% | ||||
| Repeatability | Along sensing axis, perpendicular to sensing axis: 0.04 mm | ||||
| Supply voltage | 12-24VDC | ||||
| Current consumption | 15mA | ||||
| Output | NPN NO | NPN NC | PNP NO | PNP NC | |
| Response frequency | 150 Hz | ||||
| Operation indicator | Red LED | ||||
| Protection | IP 68 | ||||
| Ambient temperature | -15°C-55°C | ||||
| Ambient humidity | 35 - 85 % RH | ||||
| Voltage withstandability | 1000 VAC | ||||
| Insulation resistance | 50 MΩ | ||||
| Material | Shell: ABS;indicator part: polyester | ||||
| Cable | cable PVC: 1M/special customized cable: line length can be customized | ||||
| Net weight | Front sensing: 15g approx., Top sensing : 20g approx. | ||||
