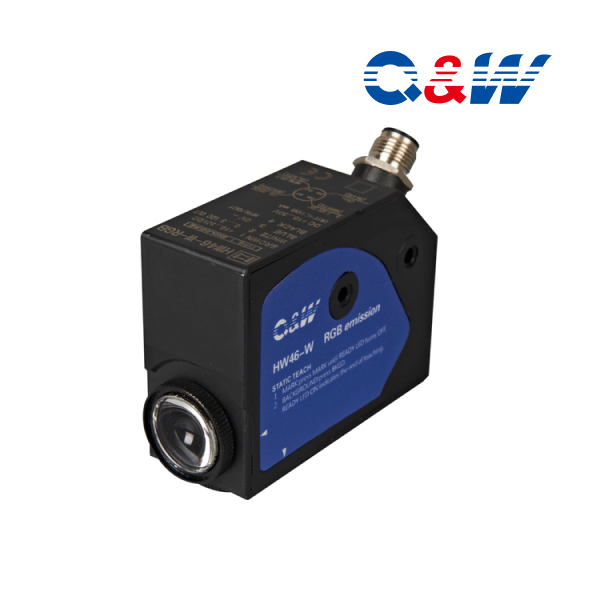

| HW46-W Color sensor | |
 | |
| Parameter | |
| Working voltage | 10...30VDC |
| Ripple wave | 2Vpp Max:2vpp |
| Power consumption (exclude current output) | 85mA |
| Output signal | Optional PNP/NPN output max 30vdc (short circuit), factory setting is NPN output |
| Output current | 100mA Max:100mA |
| Output saturation voltage | ≤2V |
| Response time | 33μs |
| Switch frequency | 15KHz |
| Analog signal | 0...5.5V (3V±10%） |
| Analog output resistance | 2.2kΩ （with short circuit protection) |
| Time delay | 0-20ms can be choose by delay choose line |
| Liangton/Antong option | Automatic |
| Indicator display | Output LED (green),ready LED (yellow) |
| Work temperature | -10...50℃ |
| Storage temperature | -20...70℃ |
| Electromagnetic protection | Double insulation |
| Detection distance | 10mm±3mm |
| Min spot size | 1.5x5mm |
| Light source type | Blue (465nm) Green (520nm) Red (630nm) Auto selection |
| Ambient light inhibition | N60947-5-2 According to EN60947-5-2 |
| Shaking | 0.5mm amplitude, 10...55Hz frequency, all direction（EN60068-2-6) |
| Impact | 11ms(30G),6 impact, all direction (EN60068-2-27) |
| Shell material | ABS |
| Eyeglass material | ABS |
| Lens material | PMMA |
| Mechanical protection grade | IP67 |
| Connection type | M12-4 |
| Weight | Max 310g |
| Installation | |
| Three sides of color mark sensor has open holes (one side is M5x6, other two sides are . |  |
| We have 6 different installation type. | |
| We only need to change the lens plastic cap and eyeglass and could choose to test from front and side . | |
| Dsitance from lens to inspection face must be the same with eyeglass,to achieve the max detection sensitivity. | |
| Lens should be in 90 degree vertical plane state with detection face under normal circumstances. | |

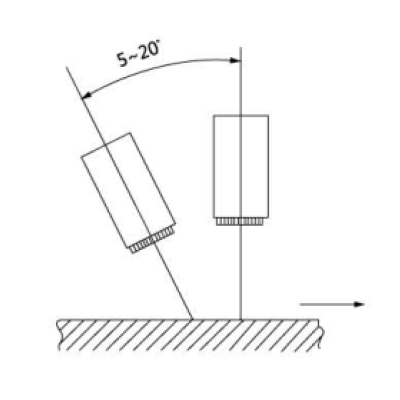

| It it is detection for strong light reflectivity material suggest inclines the detection angle to 5 to 20 degrees, and do appropriate adjustment according to the testing material and moving direction. See figure below: | |

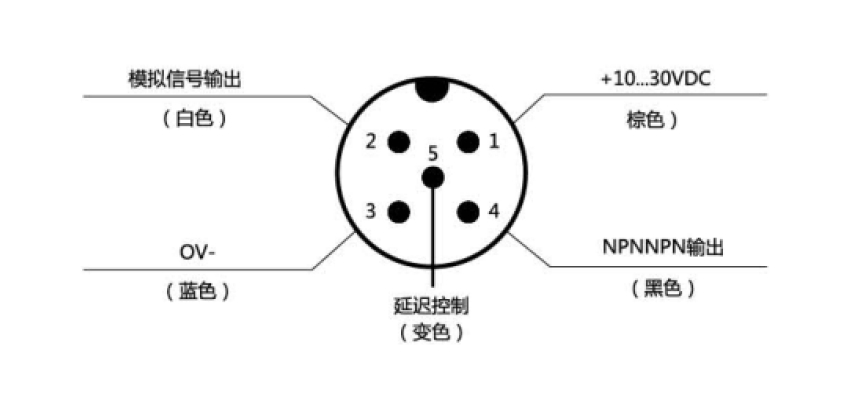

| Connection mode |
 |
| Setting |
| 1. Set the distance to be 10mm between lens and material, to achieve the max detection sensitivity. |
| 2. Set the color code in front of sensor light, Press "MARK" button till YELLOW light off. Sensor will use red green and blue light interaction to test the color code.Please don' t move the color code during this period |
| 3. Set background color in front of sensor light, Press "BKGD" button, sensor will use red green and blue light interaction to test the background color, please avoid the movement of background color during this period... |
| • Sensor can choose Liangtong or Antong operation mode automatically, regard dark color as color mode,regard light color as background to set timing as Antong mode.Regard dark color as background regard light color as color mode to set timing as Liangtong Mode. |
| • If Yellow light keeps light after do the above the operation, then setting is succeed. |
| • If yellow light twinkles slowly ,then setting failed ,because that mark code and background don't have enough contrast. So we need to reset from step 1. |
| PNP/NPN Output Singal Setting |
| Digital output singal can be setted as PNP/NPN |
| Change the output singal ,please also press |
| "MARK" and" BKGD" button for 10s. After finishing setting,will inform worker by yellow light. |
| Press the button for 1s,yellow light will be off, keep pressing till the yellow light is on again,then loose it. |
| Output setting should be noticed by yellow light.release the button,yellow light twinkle 1 time means NPN output, twinkle 2 times means PNP output. |
| Output Overload |
| Digital output singal overload is prepared by the rapid flashing of light. |
| Additional function |
| Analog Output Singal Function |
| • HW46-W could provide an analog output singal which is proportional to the sensor received singal. |
| • Size of output voltage has relationship with depth of reflected objects.voltage should be 3v when brightness is 90%. |

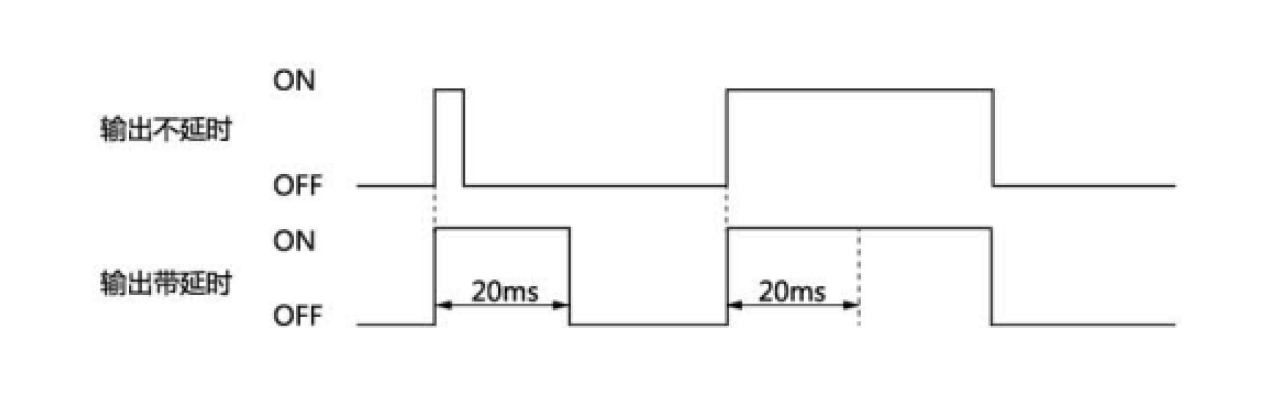

| Delay Output Setting Function |
| • Output delay time could be extended to 20ms, in order to links with system low speed interface to detect the narrow pulse. |
 |
| Start Delay Function |
| • Connect the delay singal line(grey) to power supply voltage. |
| Stop Delay Function |
| • Connect the delay singal line (grey) to OV, or don' t pick up. |
 | EX- || -3D T6 |
| Temperature grade: T6（<85°C） | |
| Max power consuption: 1500mW when is 30Vdc | |
| Max Internal capacitance: 450pF | |
| Internal inductance: could ignore |

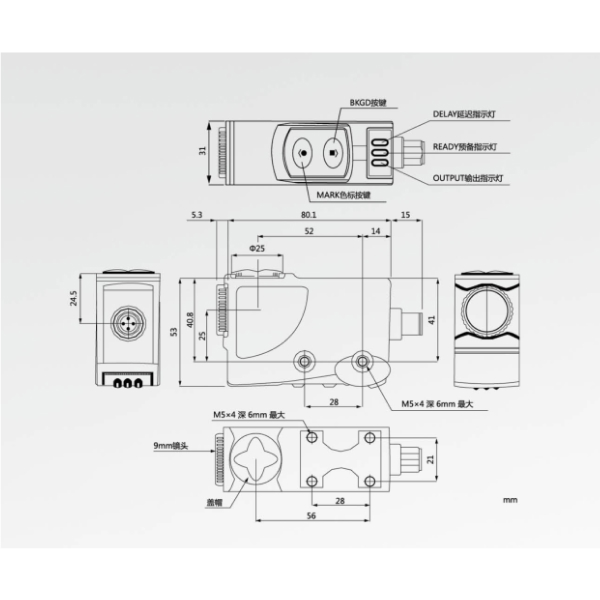

| External Dimension |
 |
