Main Application

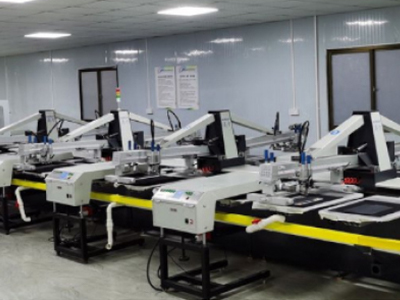

Electric heating system and temperature control equipment: Modern electric heating temperature control systems are evolving towards intelligence, networking, and green efficiency.In terms of specific applications in this field, intelligent solid state relays demonstrate wide adaptability, including industrial electric furnaces, ovens, injection molding machine temperature control systems, hot presses, etc. Intelligent solid state relays can achieve precise temperature adjusting and switch controlling for resistive heating elements. Moreover, temperature control modules combined with Internet of Things technology can realize real-time remote monitoring of equipment status and energy efficiency optimization, contributing to the development of Industry 4.0 and green manufacturing.

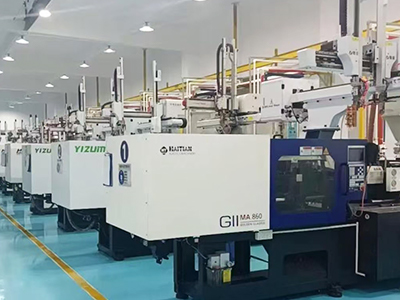

The intelligent solid state relay has evolved from a simple “power switch” to a “smart control core”. It ensures product quality through precise temperature control and enables predictive maintenance through data-driven capabilities. It is a key component that drives the intelligence, efficiency, and high reliability of rubber and plastic equipment. For instance, in the plastic industry, the temperature control of the barrel and mold of injection molding machines is crucial for forming accuracy. By using the intelligent solid state relay system, the stability of melt flow and the cooling and shaping process can be ensured.

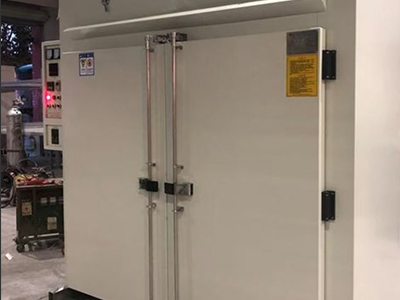

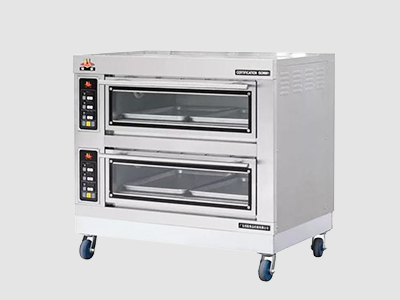

In the field of material processing, intelligent solid state relays assist industrial ovens by relying on a forced hot air circulation system and precise temperature control, ensuring that the temperature uniformity within the chamber reaches ±1%℃, thus meeting the drying or heat treatment requirements for various materials.

Technical Parameters

ISSR

Intelligent SSR-Single Phase- DC/AC


Model	ISSR-10DA	ISSR-15DA	ISSR-25DA	ISSR-40DA
Load Current	10A	15A	25A	40A
Load Voltage	24-480VAC	24-480VAC	24-480VAC	24-480VAC
Control Voltage	3-48VDC	3-48VDC	3-48VDC	3-48VDC
Control Current	3-20mADC	3-20mADC	3-20mADC	3-20mADC
On Voltage	≤1.5VAC	≤1.5VAC	≤1.5VAC	≤1.5VAC
Off-state Leakage Current	≤4mA	≤4mA	≤4mA	≤4mA
Time Off	≤10ms	≤10ms	≤10ms	≤10ms
Dielectric Strength	2500VAC	2500VAC	2500VAC	2500VAC
Insulation Resistance	100MΩ/500VDC	100MΩ/500VDC	100MΩ/500VDC	100MΩ/500VDC
Ambient Temperature	-25~+75℃	-25~+75℃	-25~+75℃	-25~+75℃
Mounting Methods	M4 Bolted fixed	M4 Bolted fixed	M4 Bolted fixed	M4 Bolted fixed
The work instructions	Double LED: (Green:Work;RED:The fault)	Double LED: (Green:Work;RED:The fault)	Double LED: (Green:Work;RED:The fault)	Double LED: (Green:Work;RED:The fault)
Weight	50g	50g	50g	50g

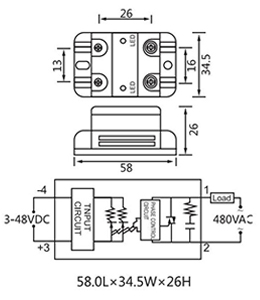

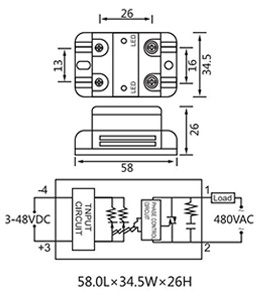

Overall dimensions

ITSR

Intelligent three phase DC controlled AC solid state relay


Model	ITSR-10DA	ITSR-25DA	ITSR-40DA	ITSR-60DA
Load Current	10A	25A	40A	60A
Load Voltage	24-600VAC	24-600VAC	24-600VAC	24-600VAC
Control Voltage	3-48VDC	3-48VDC	3-48VDC	3-48VDC
Control Current	10-30mA	10-30mA		10-30mA
On Voltage	≤2.5VAC	≤2.5VAC	≤2.5VAC	≤1.3VAC
Off-state Leakage Current	≤2mA	≤2mA	≤2mA	≤4mA
Time Off	≤10ms	≤10ms	≤10ms	≥20ms
Dielectric Strength	2500VAC	2500VAC	2500VAC	2500VAC
Insulation Resistance	100MΩ/500VDC	100MΩ/500VDC	100MΩ/500VDC	100MΩ/500VDC
Ambient Temperature	-25~+75℃	-25~+75℃	-25~+75℃	-25~+75℃
Mounting Methods	M4 Bolted fixed	M4 Bolted fixed	M4 Bolted fixed	M4 Bolted fixed
The work instructions	Double LED: (Green:Work;RED:The fault)	Double LED: (Green:Work;RED:The fault)	Double LED: (Green:Work;RED:The fault)	Double LED: (Green:Work;RED:The fault)
Weight	135g	135g	135g	135g

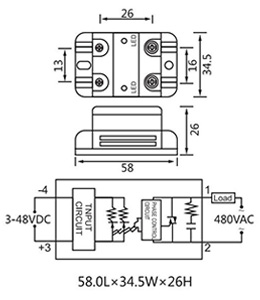

Overall dimensions

Get In Touch With Us

Characteristics of Intelligent Solid State Relay

Miniaturization:

A more compact design, reducing the volume by 30% compared to the previous generation.

Intelligent Design: Dual LED indicators display "Operational" and "Fault" statuses.

Initial/Standby: Only the red light is on (power is supplied to the load end, but no control signal is present).
Normal operation: Green light is on, red light is off.
Normal shutdown: Green light is off, red light is on.
Fault status: Both lights are on simultaneously, or neither light is on.

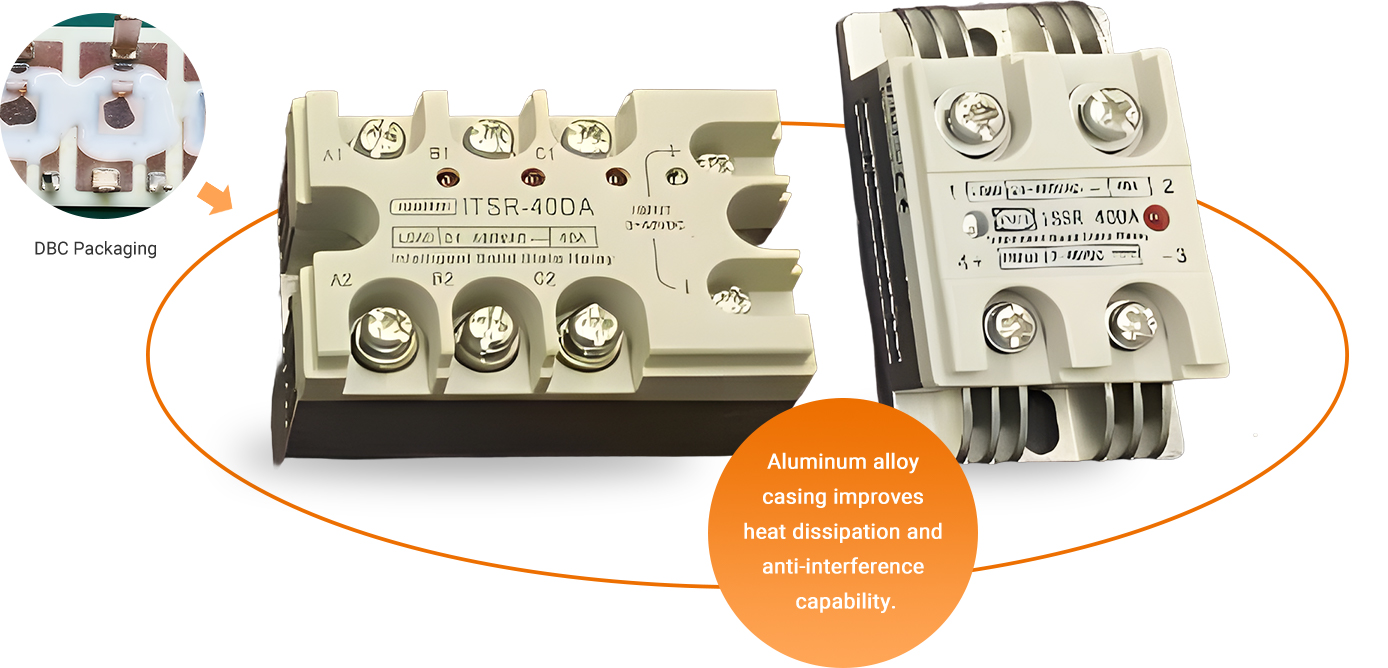

DBC Packaging

Wide-voltage constant current operation

Excellent EMC performance

The working mode of soft start

Guarantee for two years
