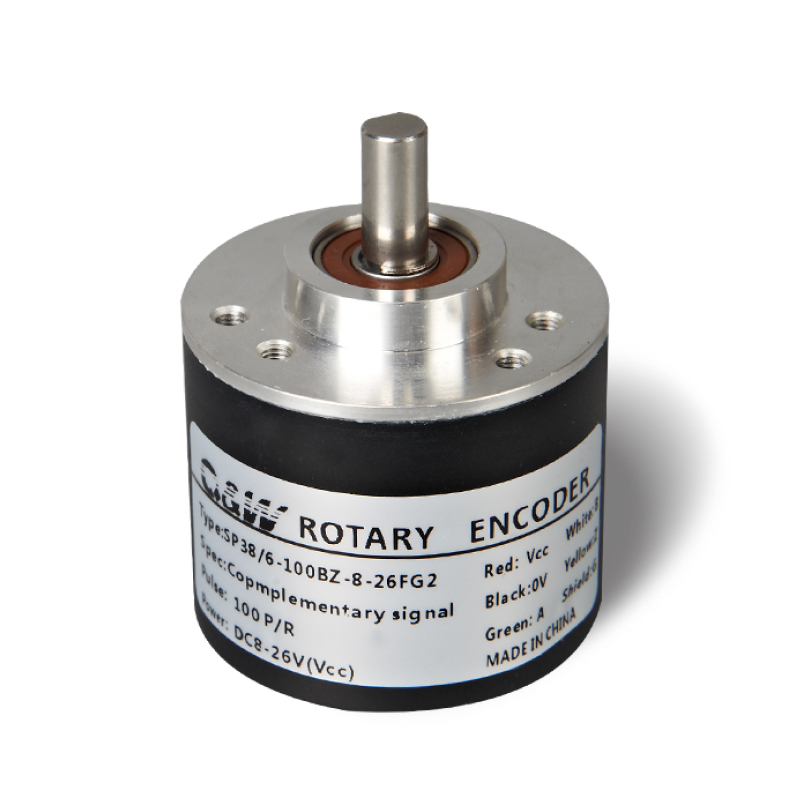

| SP38/6 Series | |||||||||||
 |  | ||||||||||
| Type Instruction | |||||||||||
| SP | 38 | / | 6 | － | 360 | BZ | － | 8-30 | F | G | 2 |
| Basis type | Main diameter 38mm | Axes diameter 6mm | Pulse count | Two-phase with a positive base point | Power voltage +8V~+30V | Output circuit form F:推挽输出 push-pull output | Out form G: Cable side out | Cable length 2m | |||
| Pulse / revolution (Note: the film code plate with vibration resist and inrush-resist, metal code wheel with high temperature resist and glass code wheel with high precision) | ||||||||||||
| 10 20 30 50 60 100 120 125 150 180 200 250 256 300 360 400 500 512 600 720 800 900 1000 1024 1200 1250 1500 1800 2000 2048 2400 2500 3000 3600 5000 |
| Output circuit | Drivers L | C,E,F | Drivers T | ||||||
| Mains voltage | +5V±5% | +5 or +8V~26V | +8V~26V | ||||||
| Current consumption | ≤60mA | ≤60mA | ≤60mA | ||||||
| Allowable load | 20mA | 30mA | 20mA | ||||||
| Signal high electrical level | ≥2.5V | ≥VCC*70%V | ≥VCC*70%V | ||||||
| Signal low electrical level | ≤0.5V | ≤0.5V | ≤0.5V | ||||||
| Rise/down time | ≤100ns | ≤1us | ≤100ns | ||||||
| Response frequency | 150KHz | 150KHz | 150KHz | ||||||
| Radial load | ≤30N | ||||
| Axial load | ≤20N | ||||
| Storque | ≤1 x 10ˉ³N.m | ||||
| Tiptop rotate speed | 6000r/min | ||||
| Runing inertia | 20g/cm² | ||||
| Allowable acceleration | 1 x 10⁴rad/s² | ||||
| weight | About0.1kg | ||||
| Concussion resist | 1000m/s²,6ms | ||
| Vibration resist | 100m/s², 10~200Hz | ||
| Working temperature | -20°C~+50°C | ||
| Storing temperature | -20°C~+80°C | ||
| Relatively humidity | ≤RH85% No icing | ||
| Protect grade | IP50 |

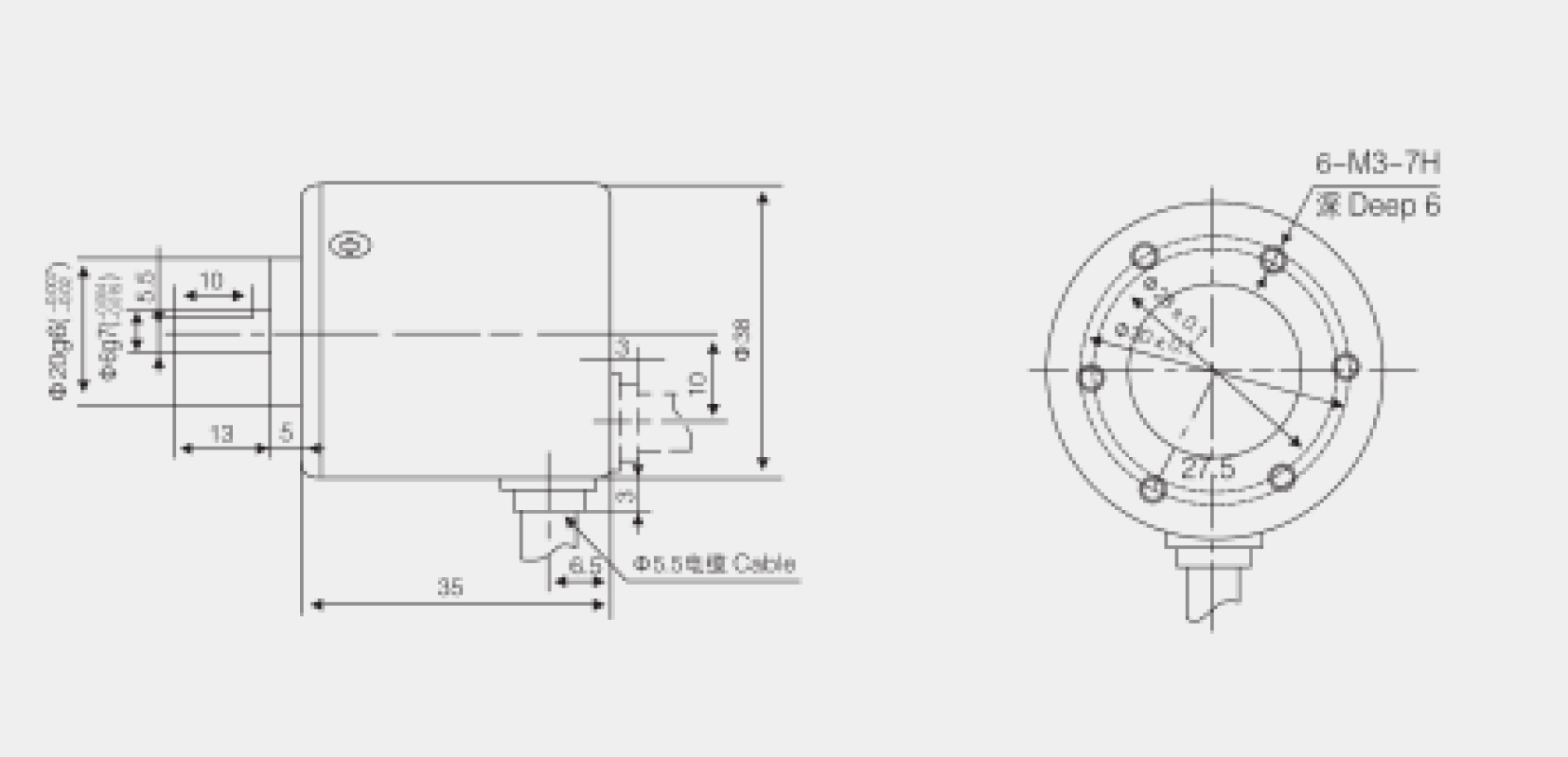

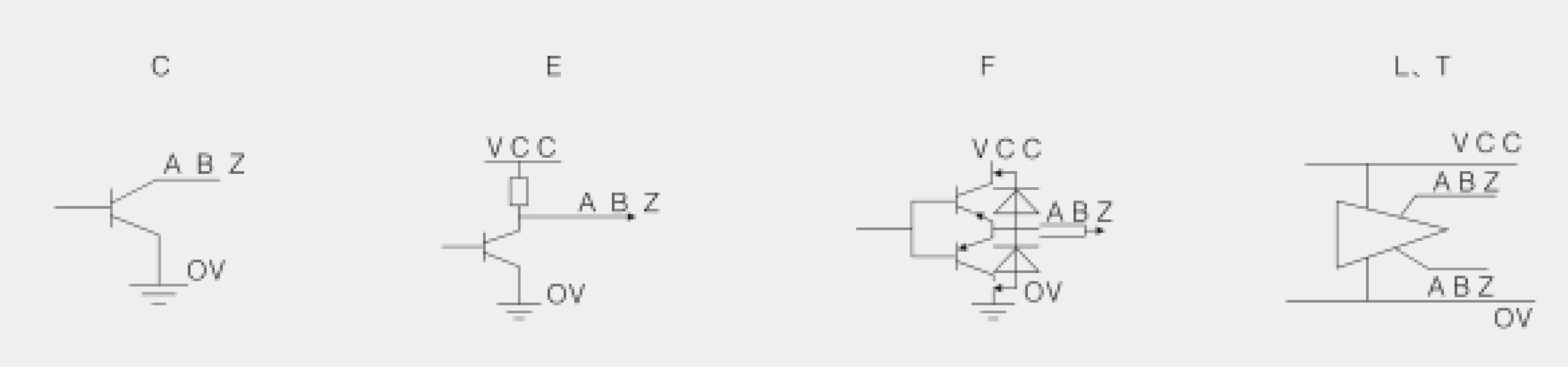

| OUTPUT CIRCUIT MODALITY | ||
 |
| OUTPUT WAVEFORM |
 |
