Main Application

The photoelectric sensor, as the core sensing component of the modern logistics automation system, with its non-contact detection, high response speed and outstanding stability, plays an irreplaceable role in enhancing the efficiency of logistics transportation and sorting as well as the intelligence level of the three-dimensional warehouse. It is like the “eyes” of the system, capturing real-time information about the position, state and movement of objects, ensuring the efficient, accurate and safe operation of the entire logistics process.

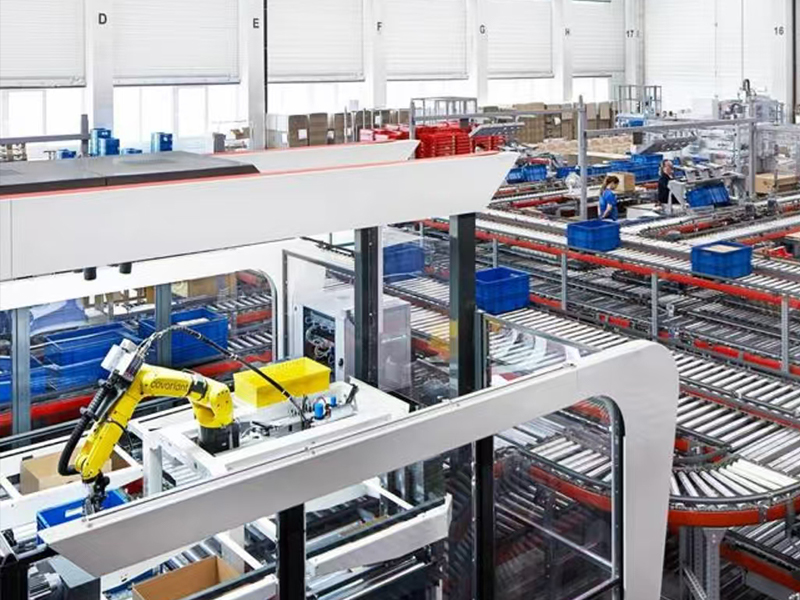

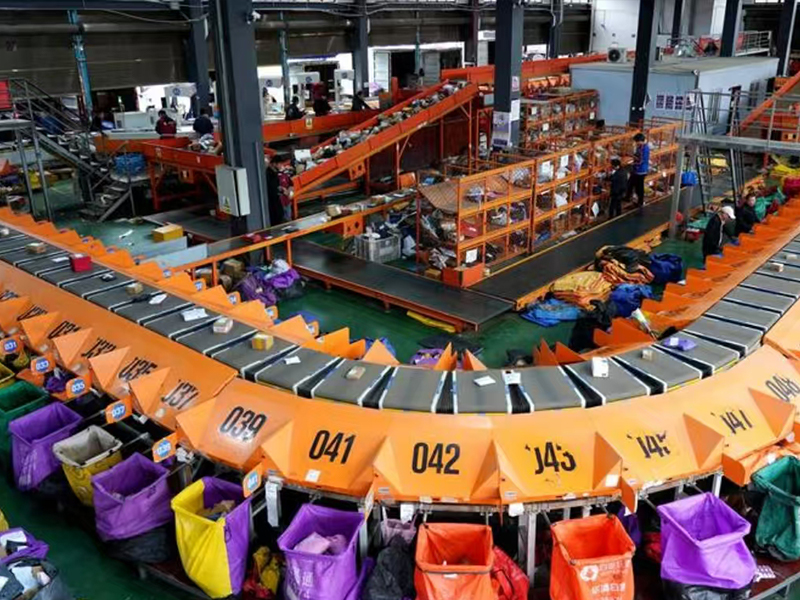

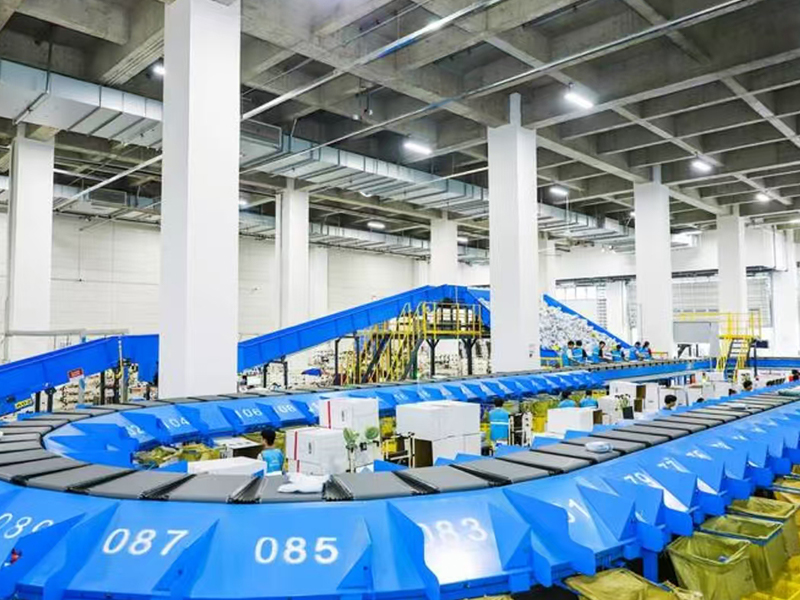

In the field of logistics transportation and sorting, photoelectric sensors are crucial for achieving efficient and precise sorting and transfer. On dynamic conveyor lines, the sensors are responsible for real-time detection of the presence and passing status of packages, ensuring the orderly flow of goods. When dealing with packages of various shapes, colors, and materials, advanced photoelectric sensors can effectively overcome detection challenges and accurately identify the goods, providing reliable signals for the automatic sorting system, thereby accurately distributing items to the corresponding channels, significantly improving sorting speed and accuracy.

Let's Collaborate

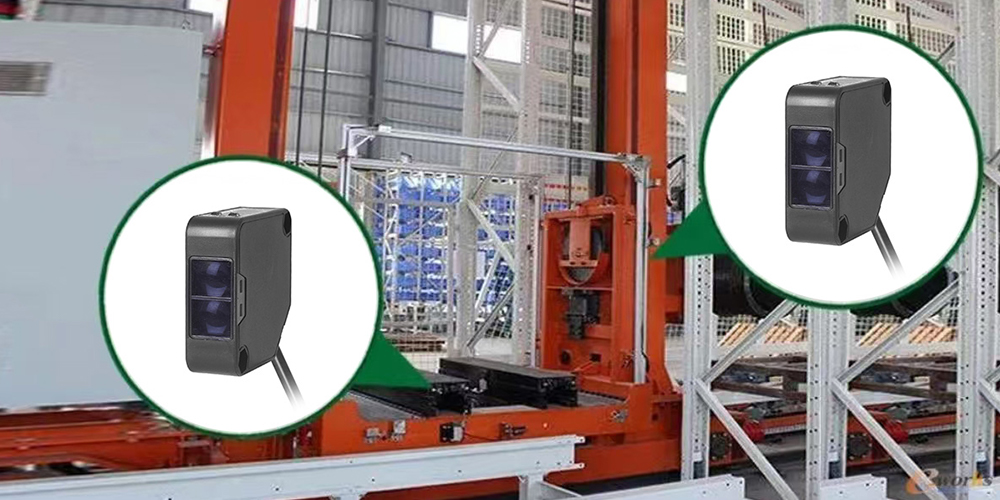

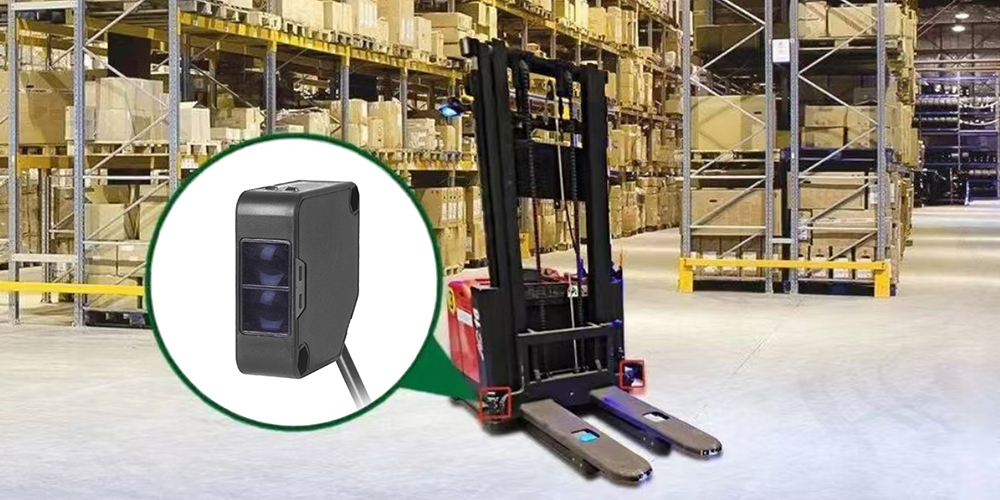

In the vertical storage system, photoelectric sensors serve as the foundation for ensuring the precise and safe operation of core equipment such as stackers and shuttle vehicles. These sensors provide accurate position feedback for the horizontal movement and lifting height of stackers, ensuring that the loading platforms can reach the designated storage locations precisely. Additionally, the sensors are used to monitor whether there are pallets on the storage positions and to detect the status of the goods on the loading platforms (such as whether they are too high or too wide), effectively preventing accidents such as drops or collisions during the storage and retrieval process. For shuttle vehicles operating within the warehouse, photoelectric sensors are also used for path navigation and collision prevention, ensuring stable operation in a densely stored environment.

Let's Collaborate

Technical Parameters

EN Series Photoelectric Sensor EN33 long distance diffused cable type photoelectric sensor EN50 Series Long Distance wide Voltage series sensor EN18P Difflsed Type Long Distance Cable Type Photoelectric Sensor

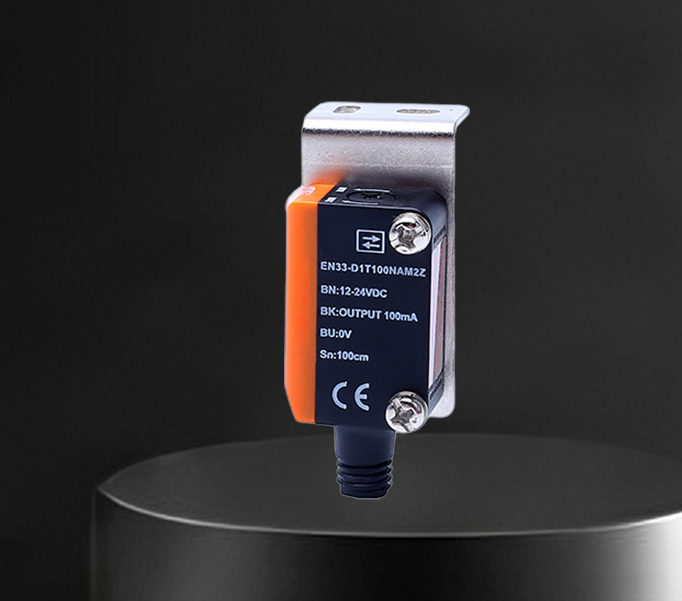

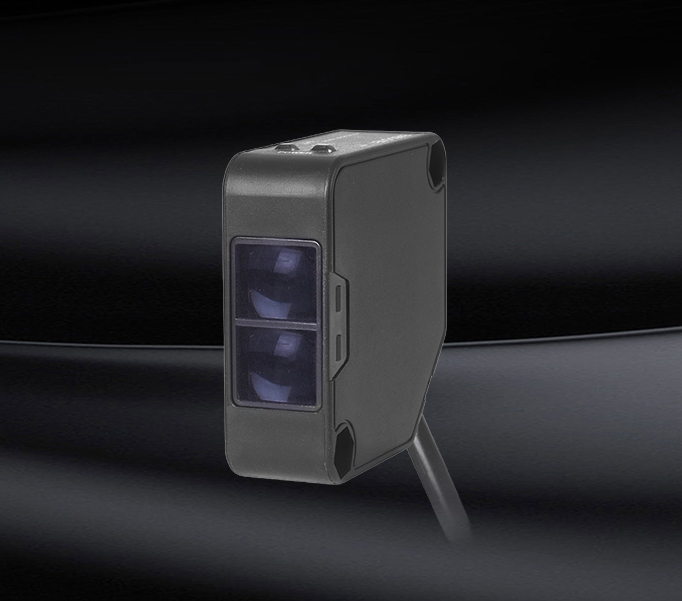

EN33 long distance diffused cable type photoelectric sensor

A photoelectric sensor that can be used in the sun

Long-distance detection Diffused type:150cm

General purpose photoelectric sensor suitable for logistics device

Suitable for EN product(with PNP and NPN)in the world

Red light /infrared light optional

Product model			Diffused type
Model	NPN	NO	EN33-D1T50NA	EN33-D1T100NA	EN33-D1T150NA
	NPN	NC	EN33-D1T50NB	EN33-D1T100NB	EN33-D1T150NB
	PNP	NO	EN33-D1T50PA	EN33-D1T100PA	EN33-D1T150PA
	PNP	NC	EN33-D1T50PB	EN33-D1T100PB	EN33-D1T150PB
Power supply			12-24VDC±10%fluctuation
Consumption current			<30mA	<30mA	<30mA
Effective detection range			50cm	100cm	150cm
Standard sensing object			Matte Whiteboard Paper 20cm×20cm
Light			Infrared LED 660nm,Infrared 880nm
Response time			Move and reset less than 1ms
Ambient illumination			Lamp:Less than 3000Lus sunlight:Less than 11000Lus
Ambient Temperature			-25℃~+55℃ without icing and condensation
Ambient Humidity			30-85%RH
Insulated resistance			>20MΩ
Voltage resistance			AC1000V 50/60Hz 1 minute
Material			Housing:reinforced ABS lens:polycarbon
Product Standards			GB/T14048.10-2016
Protection level			IP64(IEC)
Circuit protection			Protection against error output,power supply reserve connection,pass/cut off(100ms)

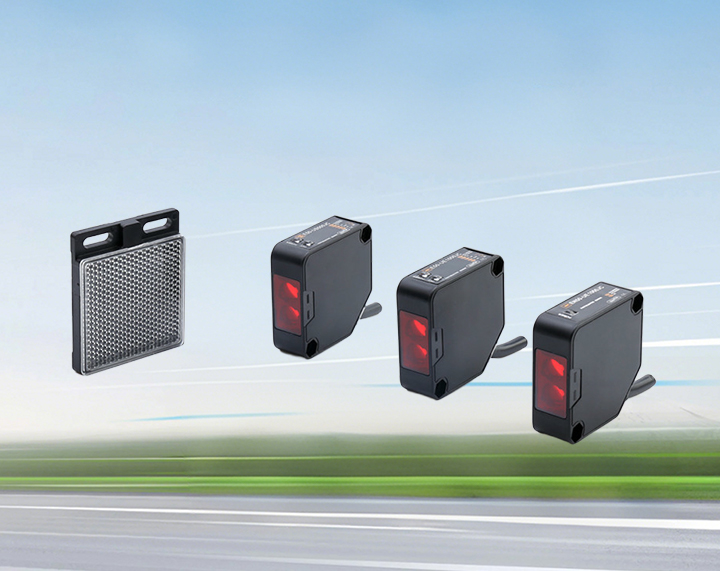

EN50 Series Long Distance wide Voltage series sensor

Long-distance detectlion:One times more than normal product detection distance

New photoelectric-IC in order to incredse the Anti-glare interference

Along with nomally open and normally closed output

Product model	EN50-UE2000JC	EN50-US1000JC	EN50-UT200JC
Type	Through beam type	Retroreflective（l*1)	DIffuse type
Standard sensing object	Matte white board paper 20cm×20cm
Detecting distance	2000cm	10-1000cm	200cm
Detecting target	Opaque materialsφ16mm	Opaque materials with minimum length of 60mm	Non-transparent,translucent or transparent
Light	Infrared 880nm	Red light LED 660nm/Infrared 880nm
Response time	Move and reset less than lms
Power supply	AC36-240V±10%50/60Hz,DC24-240V±10%/Ripple P-P:10%below)
Sensitivity	——	Adjustable by built-in VR
Control output	Relay output ：Capacity: DC 30V3A Resistive load、250VAC 3A Resistive load 10 Contact orde: NO+NC
Ambient illumination	Lamp:Less than 3000LUS.Sunlight:Less than 1100OLUS.
Ambient Temperature	-25℃~+55℃without icing and condensation
Material	Housing:ABS.lens:PC.
Product Standards	GB/T14048.10-2016
Protection	IP64(IEC)

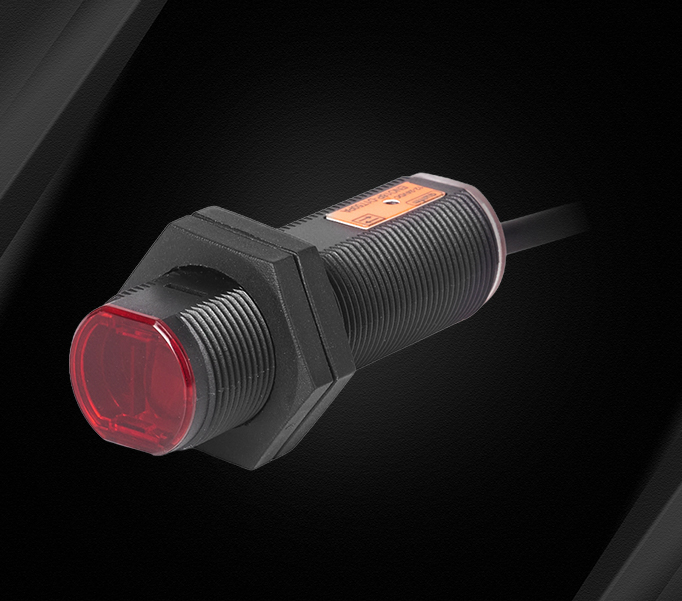

EN18P Diffused Type Long Distance Cable Type Photoelectric Sensor

Dimensions:M18×1×58

Threaded cylindrical photoelectric sensor

Long life

Photo-IC technology

High Anti-Glare interference

With sensitivity adjustment

Product model			EN18P-DIT□□□
Type			Diffuse type
Detecting distance			50cm	100cm	200cm
Detecting target			Transparent,Translucent,Opaque materials
Model	NPN	NO	EN18P-DT50NA	EN18P-DIT100NA	EN18P-DIT200NA
		NC	EN18P-DIT50NB	EN18P-DIT100NB	EN18P-DIT200NB
		NO+NC	EN18P-DIT50NC	EN18P-DIT100NC	EN18P-DIT200NC
	PNP	NO	EN18P-DIT50PA	EN18P-DIT100PA	EN18P-DIT200PA
		NC	EN18P-DIT50PB	EN18P-DIT100PB	EN18P-DIT200PB
		NO+NC	EN18P-DIT50PC	EN18P-DIT100PC	EN18P-DIT200PC
Standard sensing object			Matte white board paper 20cm×20cm
Response time			Move and reset less than 1ms
Power supply			12-24VDC(10-30V)
Light			Red light LED 660nm/Infrared 880nm
Ambient Temperature			-25℃~+55℃ without icing and condensation
Product Standards			GB/T14048.10-2016
Protection			IP66(IEC Specification)
Material			Shell:Plastic,Lens cap:Acrylic,Lens:Acrylic
Ambient illumination			Lamp:Less than 3000LUS.Sunlight:Less than 11000LUS.

Get In Touch With Us

Characteristics of Photoelectric Sensor

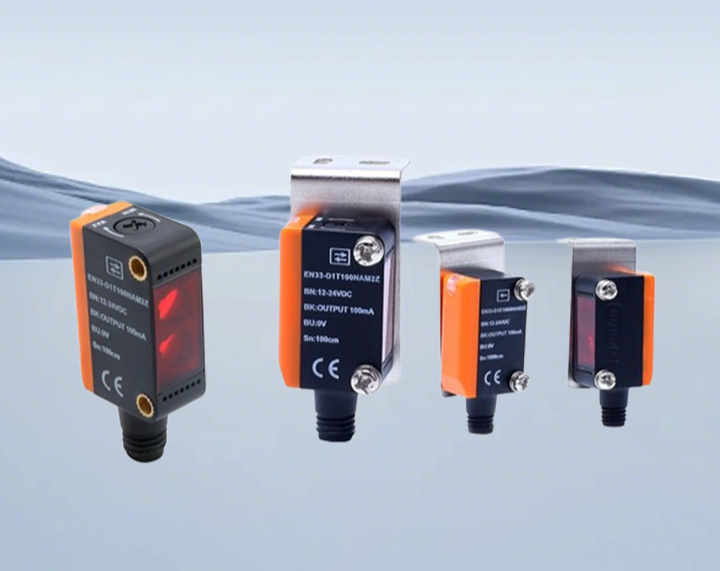

EN33 Series

Unique appearance with the design and color independently created by QWIFM, and it has extremely powerful functionality.

An optical sensor that can be used in sunlight -- resistant to strong light interference, Anti-magnetic interference;

A long-distance photoelectric sensor with a detection range that is twice as far as similar products;

Standard polarizing lens reflecting type;

Install without mutual interference.

EN50 Series

It belongs to the standard distance wide voltage series sensor.

Long-distance detection: One times more than normal product detection distance;

Resistant to strong light interference, anti-magnetic interference;

It is one of the alternatives for outdoor work.

EN18 Series

Unique appearance with the design and color independently created by QWIFM, and it has extremely powerful functionality.

Can be used in the sunlight, an optical sensor that can be used in sunlight -- resistant to strong light interference, Anti-magnetic interference;

A long-distance photoelectric sensor with a detection range that is twice as far as similar products;

The output end equipped with a sensitivity regulator, offers optional leads or connectors, and both the plug-in and the connector types are available;

Non-contact long-distance measurement;

Fast speed and high precision.
